Expose ports

There are a few ways to expose ports on your pod to the outside world. The first thing that you should understand is that the publicly exposed port is most likely NOT going to be the same as the port that you expose on your container. Let's look at an example to illustrate this.

Let's say that I want to run a public API on my pod using uvicorn with the following command:

uvicorn main:app --host 0.0.0.0 --port 4000

This means that uvicorn would be listening on all interfaces on port 4000. Let's now expose this port to the public internet using two different methods.

Through RunPod's Proxy​

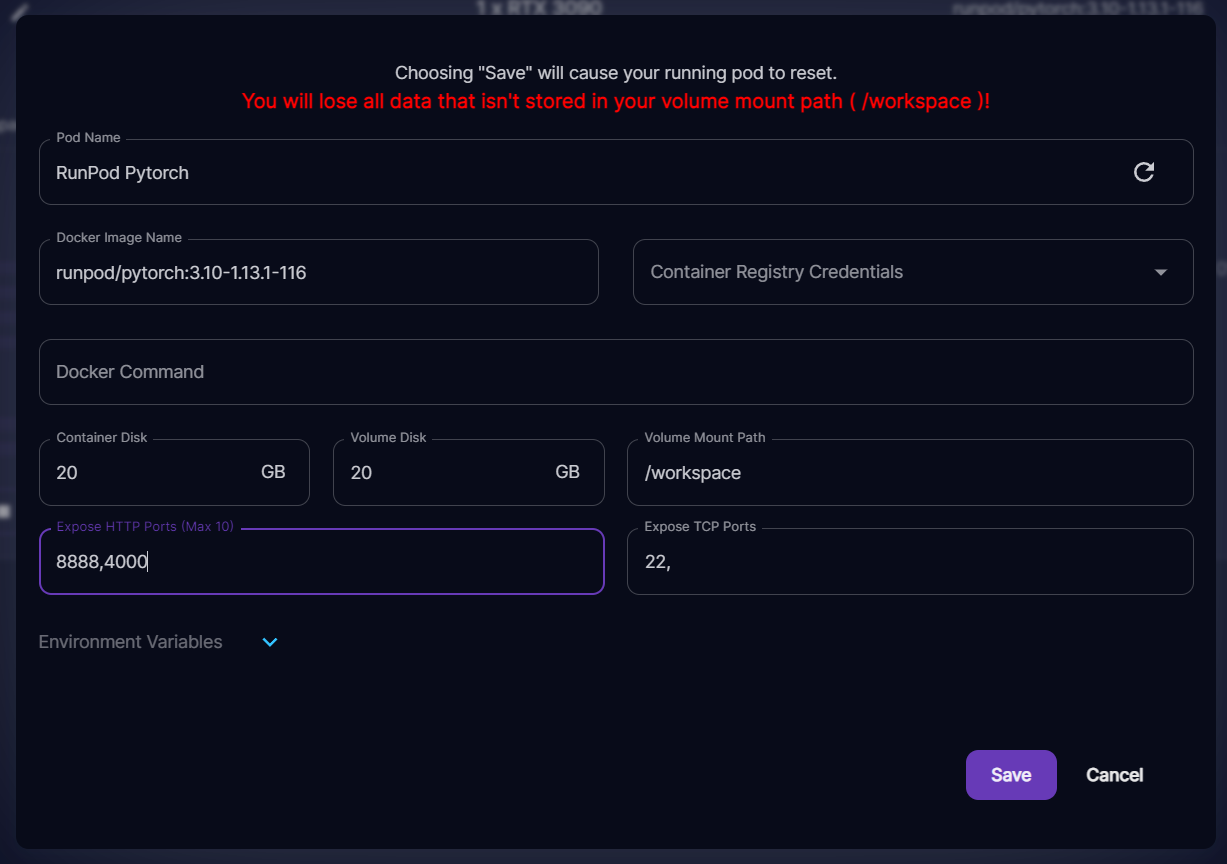

In this case, you would want to make sure that the port you want to expose (4000 in this case) is set on the Template or Pod configuration page. You can see here that I have added 4000 to the HTTP port list in my pod config. You can also do this on your template definition.

Once you have done this, and your server is running, you should be able to hit your server using the pod's proxy address, which is formed in this programmatic way, where the pod ID is the unique ID of your pod, and the internal port in this case is 4000:

https://{POD_ID}-{INTERNAL_PORT}.proxy.runpod.net

Keep in mind that this exposed to the public internet. While your pod ID can act as a password of sorts, it's not a replacement for real authentication, which should be implemented at your API level.

Important Proxy Behavior Notes​

When users access their pods via the RunPod proxy, the connection follows this chain:

User -> Cloudflare -> RunPod Loadbalancer -> Pod

It's crucial to be aware of the following behavior:

  • Cloudflare has a 100-second limit for a connection to remain open.
  • If your service does not respond within 100 seconds of a request, the connection will be closed.
  • In such cases, the user will receive a 524 error code.

This timeout limit is particularly important for long-running operations or services that might take more than 100 seconds to respond. Make sure to design your applications with this limitation in mind, potentially implementing progress updates or chunked responses for longer operations.

Through TCP Public IP​

If your pod supports a public IP address, you can also expose your API over public TCP. In this case, you would add the port to the TCP side of the configuration.

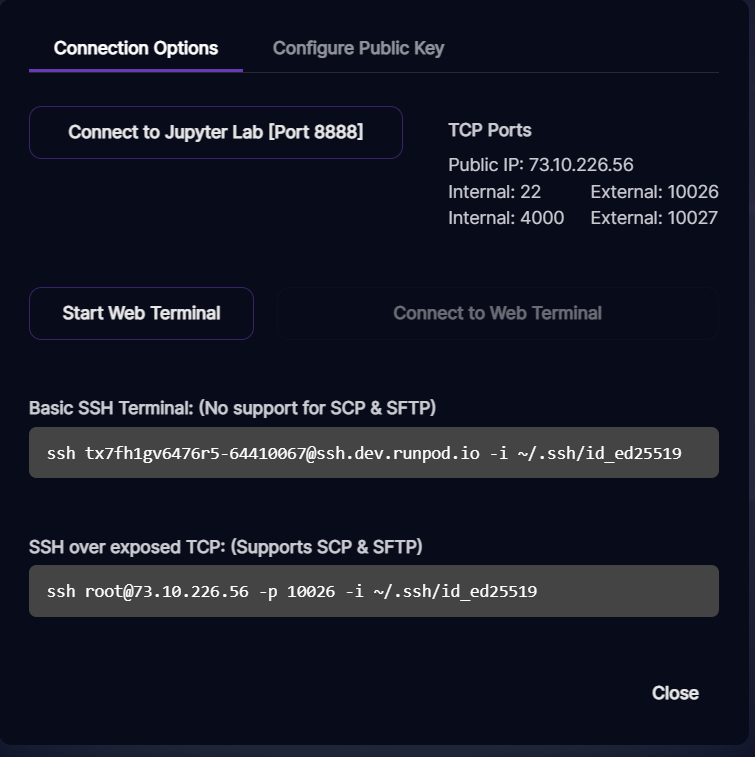

The only difference here is that you will receive an external port mapping and a public IP address to access your service. For example, your connect menu may look something like this:

In this case, you would be hitting your service running on 4000 with the following ip:port combination

73.10.226.56:10027

Be aware that the public IP could potentially change when using Community Cloud, but should not change when using Secure Cloud. The port will change if your pod gets reset.

Requesting a Symmetrical Port Mapping​

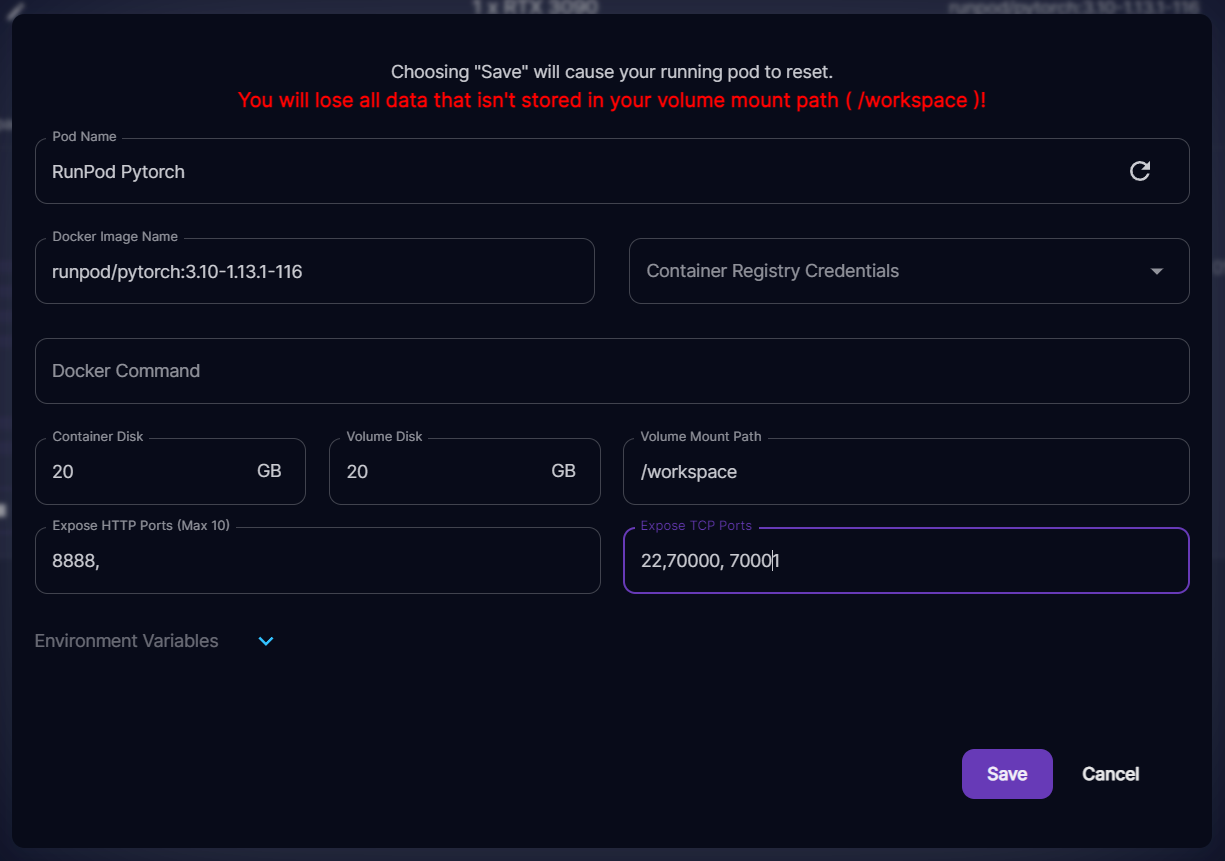

For some applications, asymmetrical port mappings are not ideal. In the above case, we have external port 10027 mapping to internal port 4000. If you need to have a symmetrical port mapping, you can request them by putting in ports above 70000 in your TCP port field.

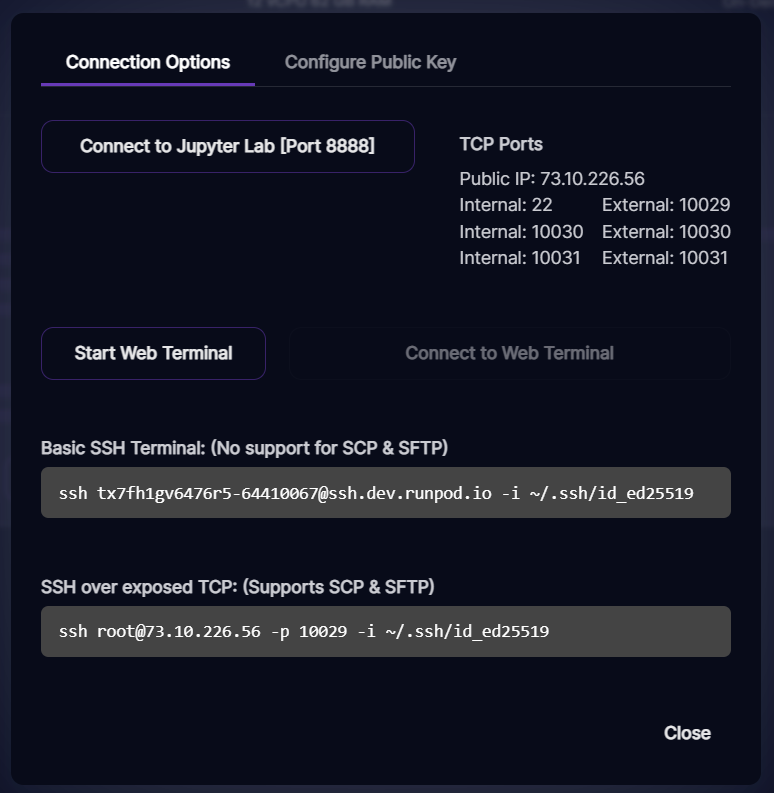

Of course, 70000 isn't a valid port number, but what this does is it tells RunPod that you don't care what the actual port number is on launch, but to rather give you a symmetrical mapping. You can inspect the actual mapping via your connect menu:

In this case, I have requested two symmetrical ports and they ended up being 10030:10030 and 10031:10031. If you need programmatic access to these in your pod, you can access them via environment variable:

RUNPOD_TCP_PORT_70001=10031
RUNPOD_TCP_PORT_70000=10030
